Circuit Mechanisms for Spatial Relation Generation in Diffusion Transformers

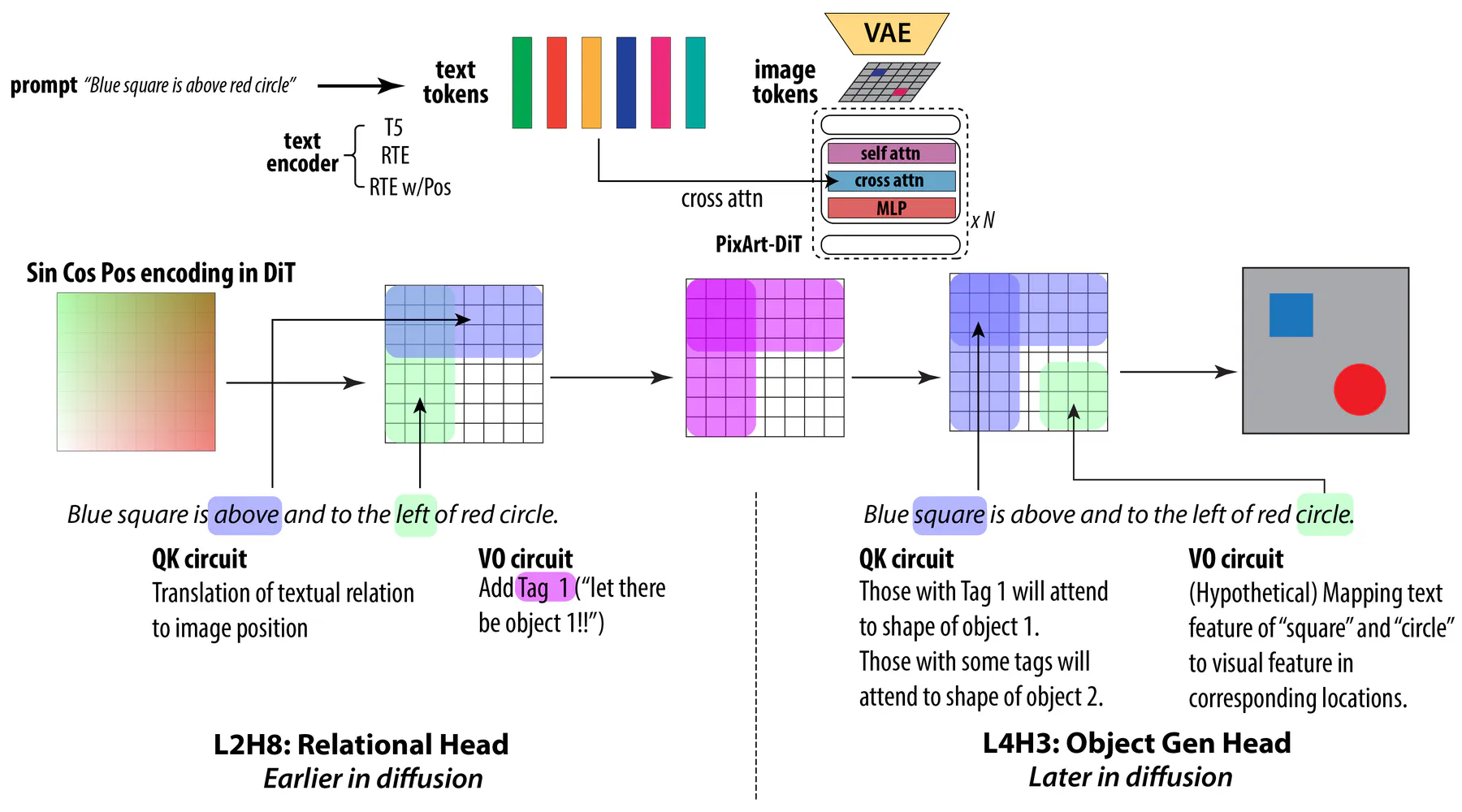

We investigate mechanistic interpretability in Diffusion Transformers (DiTs) for text-to-image generation, focusing on how these models generate correct spatial relations between objects. Training DiTs of varying sizes with different text encoders on a task requiring generation of images with two objects whose attributes and spatial relations match text prompts, we discover that spatial-relation information is passed to image tokens through a two-stage circuit involving separate cross-attention heads when using random text embeddings. With pretrained T5 encoders, the DiT employs a different circuit that leverages information fusion in the text tokens. Notably, while both approaches achieved similar in-domain performance, their robustness to out-of-domain perturbations differed significantly, suggesting challenges in generating correct spatial relations in real-world applications.
